Drive Unit Repair Gasket Kit

Kit Description

Complete repair and maintenance kit for the electric motor of CITROËN, FIAT, JEEP, LANCIA, OPEL, and PEUGEOT vehicles equipped with ZK01 and ZK02 electric motors.

Designed to address common issues such as insulation failure and main rotor bearing problems.

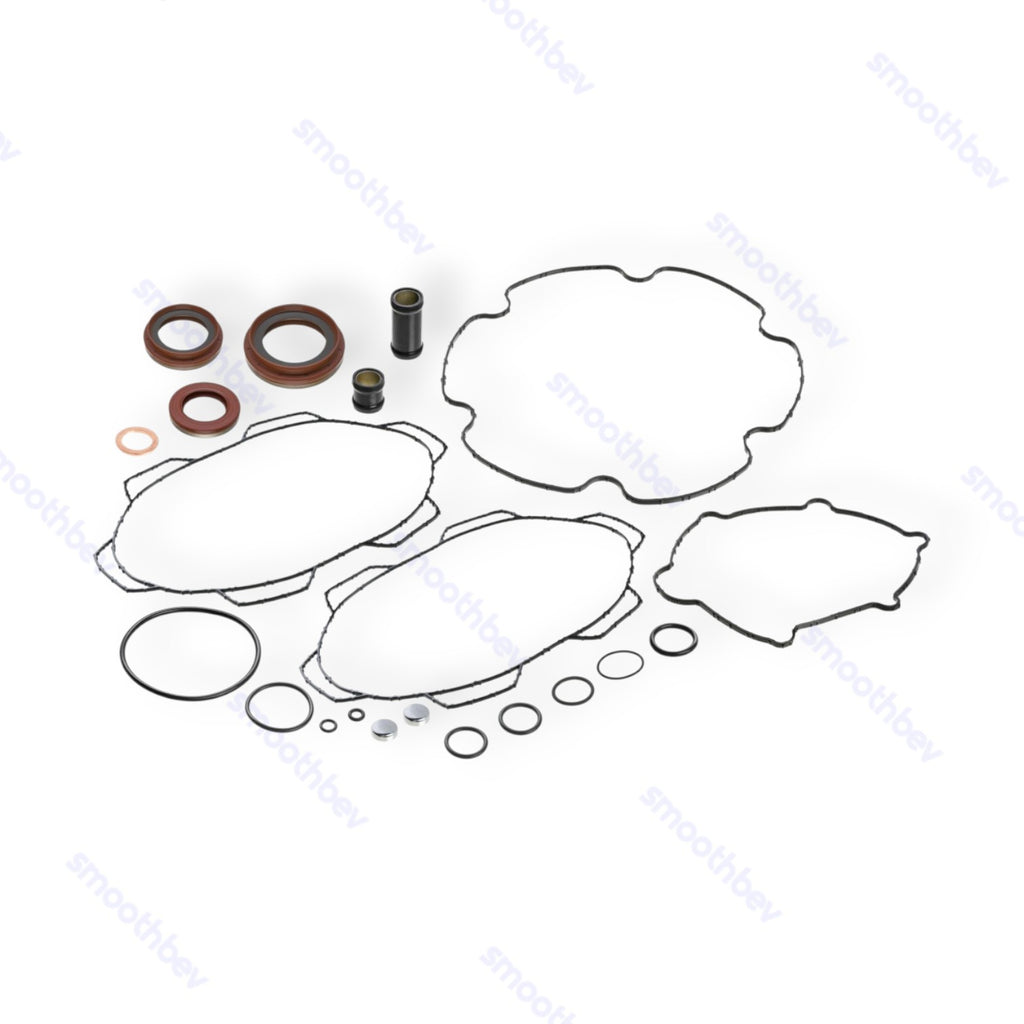

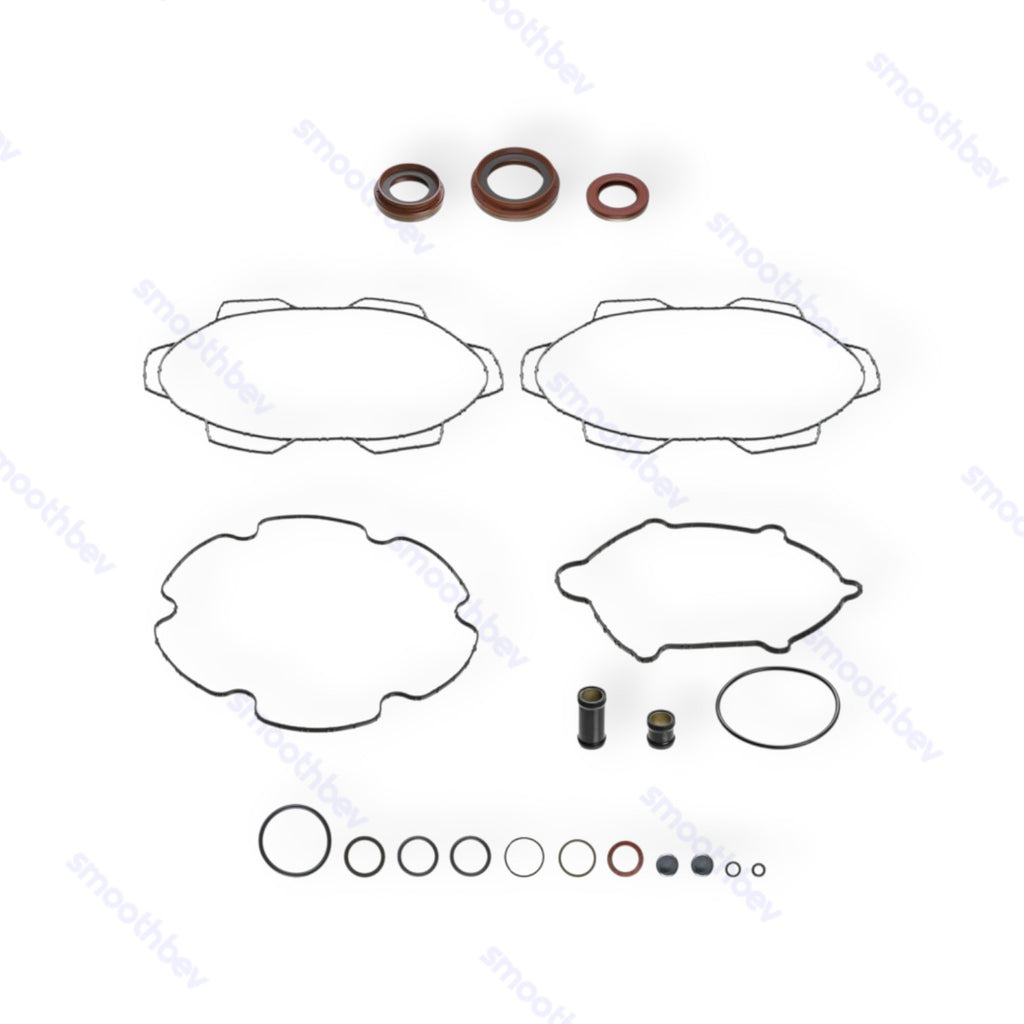

Kit Contents

• Stator gasket – encoder side / transmission side (2 pcs)

• Outer stator cover gasket (1 pc)

• Inner stator cover gasket (1 pc)

• Left transmission seal (1 pc)

• Right transmission seal (1 pc)

• Primary shaft output seal (1 pc)

• Electric motor / transmission case union gasket (1 pc)

• Coupling sleeve (1 pc)

• Inverter cooling sleeve (1 pc)



Applications

• Motor code: ZK01, ZK02

• Model years: 2020–present



Quality & Materials

All components are manufactured by Ajusa, ensuring:

• High resistance to wear and high temperatures

• Long-lasting and reliable performance

• Suitability for demanding operating conditions



Typical Repairs

• Insulation failure

• Main rotor bearing wear or damage



Technical Support

• Includes a repair manual

• Access to a step-by-step tutorial video for correct assembly



Safety Notice

When working with high-voltage systems, always follow proper safety procedures and use appropriate protective equipment.

Used in Vehicles

• Abarth: 600e, Abarth 500e


• Jeep: Avenger


• DS Automobiles: DS3 Crossback E-Tense, DS3 E-Tense


• Peugeot:
• e-208 II
• e-308 III
• e-308 SW III
• e-2008 II
• e-Partner
• e-Rifter
• e-Expert
• e-Boxer
• e-Traveller


• Opel / Vauxhall:
• e-Astra L
• e-Astra L Sports Tourer
• e-Astra VIII
• e-Astra VIII Sports Tourer
• e-Corsa F
• e-Corsa V
• e-Combo
• e-Combo e-Tour
• e-Combo IV
• e-Movano C
• e-Vivaro C
• e-Zafira Life


• Citroën:
• ë-C4
• ë-C4 X
• ë-Berlingo
• ë-Dispatch
• ë-Jumpy
• ë-Jumper
• ë-Relay
• ë-SpaceTourer
• ë-Life


• Fiat:
• e-Doblo
• e-Ducato
• e-Scudo
• e-Ulysse


• Lancia: Ypsilon EV
