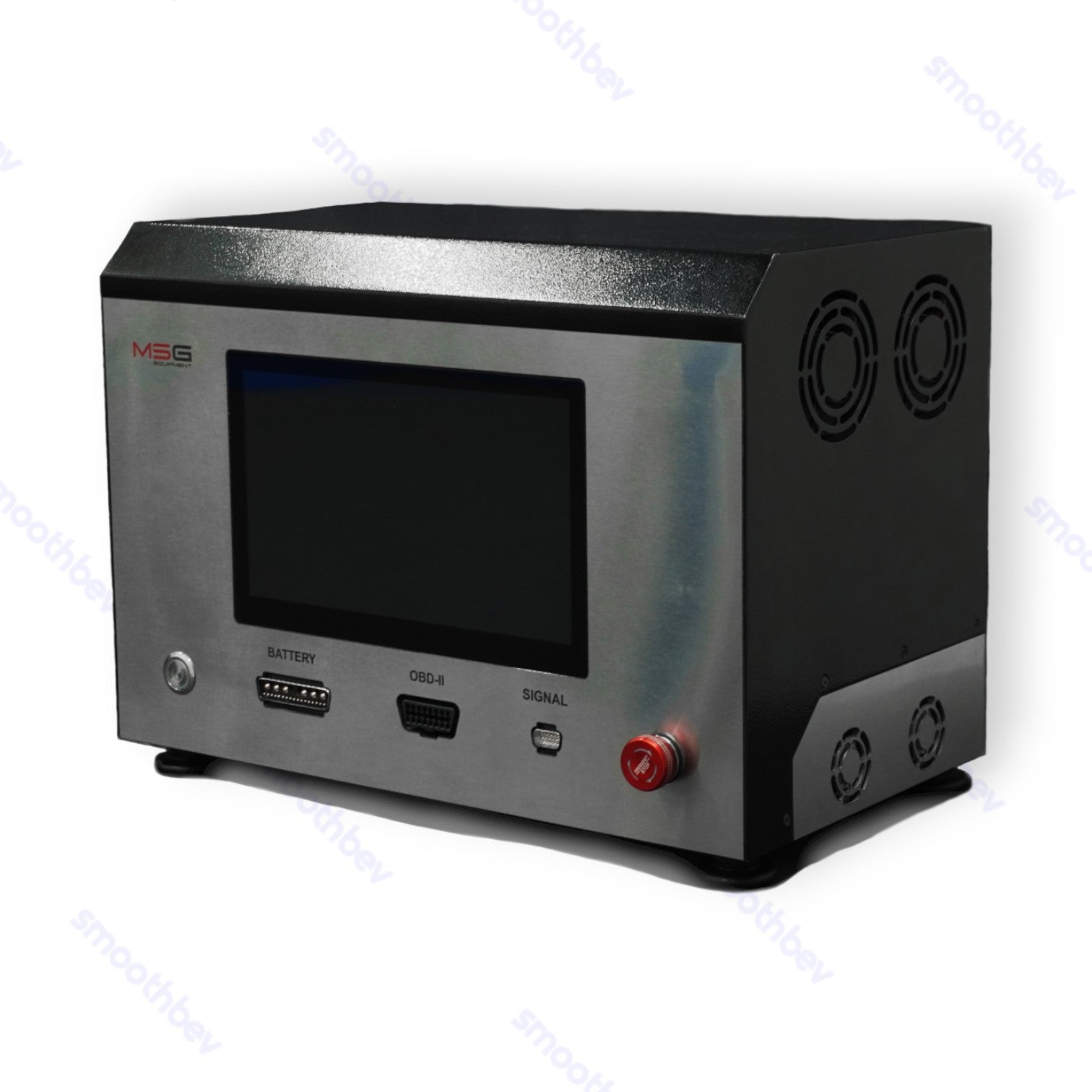

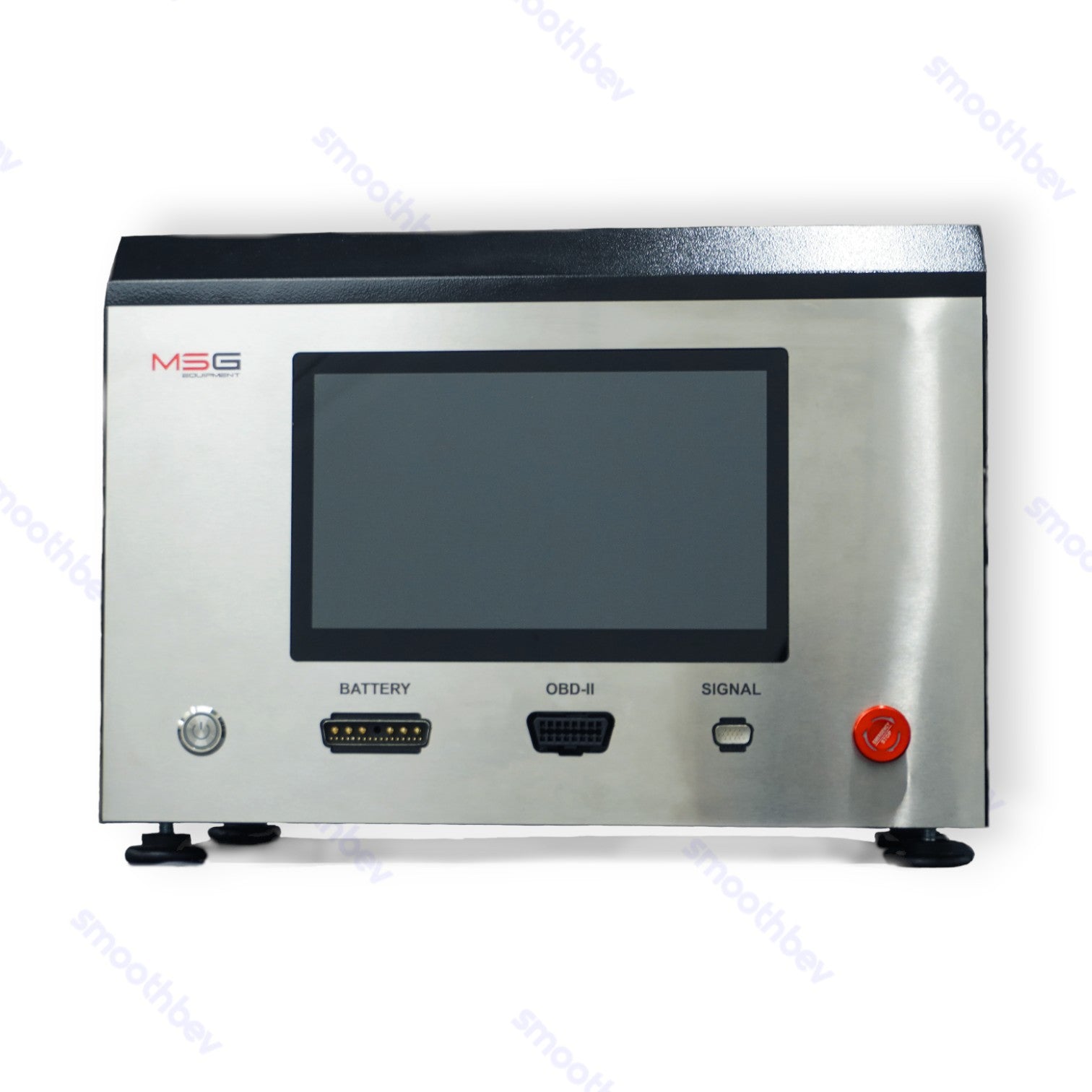

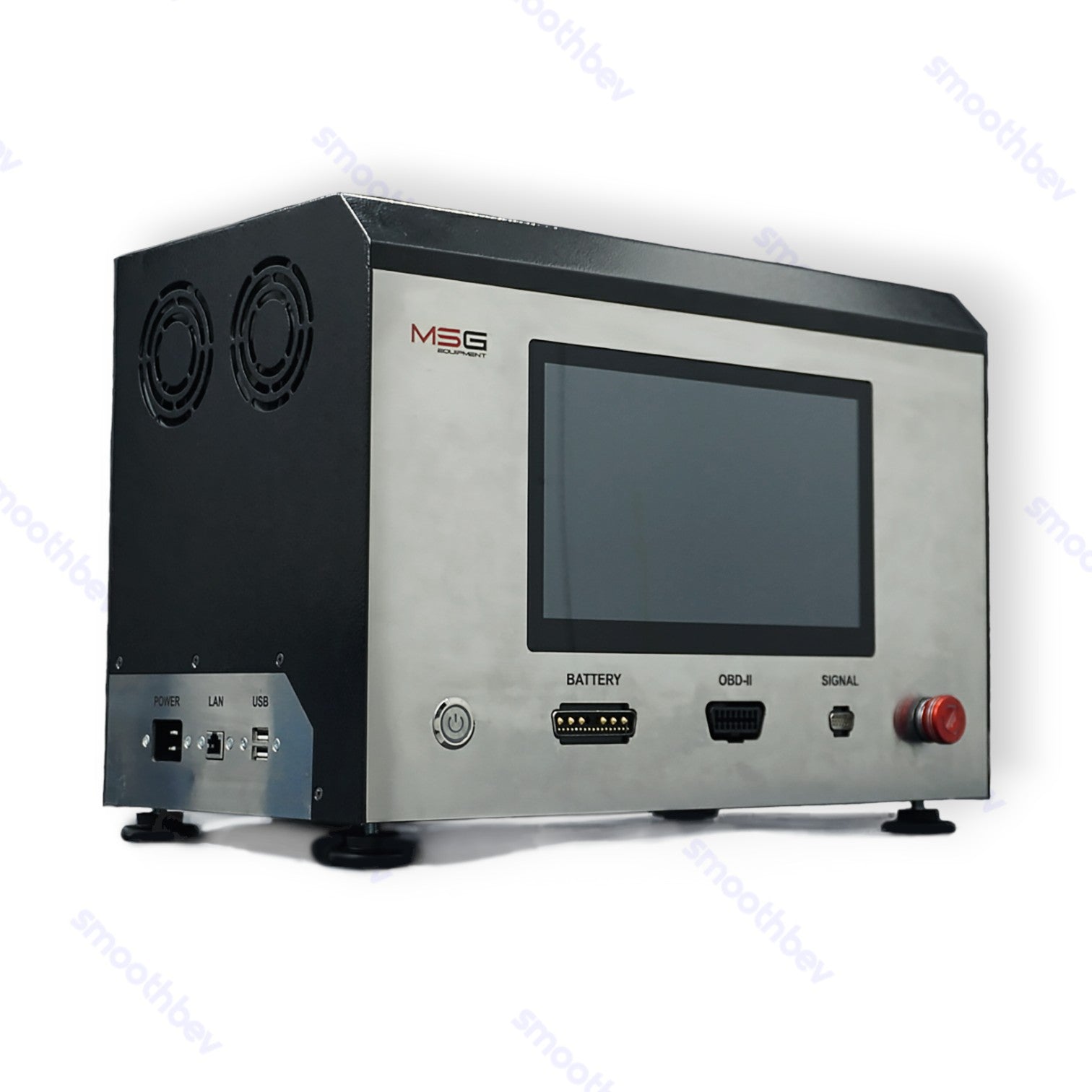

MS801 Lithium-Ion Battery Module Tester
€9.890,00
Ga direct naar de productinformatie
MS801 Lithium-Ion Battery Module Tester
✓ MS801
€9.890,00
BTW inbegrepen
Op voorraad — Binnen 48 uur verpakt en verzonden
SKU:
MS801
Verzekerde FedEx-verzending
Verzendkosten worden vóór betaling weergegeven
100% pasvormgarantie of gratis omruiling
Vraag een gratis compatibiliteitscontrole via VIN aan.
Kwaliteitsgarantie
Originele en OEM-onderdelen getest en afkomstig van geverifieerde leveranciers.
Deskundige ondersteuning via chat of e-mail
Toegewijde technische specialist klaar om u voor en na aankoop te helpen.
MS801 Tester for Lithium-Ion Battery Module Diagnostics and Balancing
MS801 is a specialized tester designed for servicing and diagnosing lithium-ion modules of high-voltage batteries used in electric and hybrid vehicles. The tester supports battery packs (battery modules) containing from 2 to 14 series-connected Li-ion cells (up to 4.2 V per cell) and from 2 to 16 LiFePO₄ cells.
The device functionality includes battery charging, discharging with actual capacity measurement, cell internal resistance testing, and active 16-channel balancing with a current range from 0.05 to 2 A. Simultaneous charging and discharging of cells during the balancing process significantly reduces the procedure time.
During battery capacity measurement, the MS801 uses regenerative discharge technology. Unlike conventional diagnostic systems, where the stored energy is simply dissipated as heat, the MS801 feeds it back into the electrical grid. This significantly reduces overall power consumption and lowers operating costs.
For communication with the Battery Management System (BMS), the tester is equipped with CAN and RS485 interfaces. It also supports connection of diagnostic scan tools via the OBDII connector for reading data from the battery BMS.
All test results are automatically stored in the device's internal memory and can be analyzed on a PC using dedicated software. The dedicated software also allows users to generate diagnostic reports in PDF format.
The tester can be operated either via the built-in display or remotely through any web browser using a laptop, tablet, or smartphone.
Features
- Compact dimensions.
- Automatic diagnostic mode based on user-configurable test scenarios.
- High charge and discharge currents.
- Regenerative discharge with energy fed back into the electrical grid.
- Cell internal resistance testing.
- Remote control via a web browser.
- Specialized connection cables for battery modules with a non-detachable molded housing (optional).
- Connection of diagnostic scan tools via OBDII.
- Generation of diagnostic reports in PDF format.
- Free software updates.
Technical Specifications
| Warranty | 24 months |
|---|---|
| Supply voltage, V | 230 |
| Power consumption, kW | 2.2 |
| Software update | Available |
| Working with data buses | CAN, RS485 |
| Connecting the diagnostic scanner | OBDII |
| Control | On the touchscreen display or remotely over the local network |
| Saving diagnostic results | Available |
| Printing of diagnostic results | Available via specialized software |
| Internet connection | Ethernet, Wi-Fi |
| Width, m | 0.44 |
| Depth, m | 0.27 |
| Height, m | 0.32 |
| Weight, kg | 20 |
| Charge rate, A | Up to 60 |
| Discharge rate, A | Up to 70 |
| Power source | Single-phase electrical network |
| Energy recycling power (max), kW | 1.75 |
| Maximum battery module voltage, V | 59 |
| Number of series-connected cells (LiFePO₄) | From 2 to 16 |
| Energy recycling during discharge | Yes |
| Number of series-connected cells (Li-ion, 4.2 V) | From 2 to 14 |
| Peak current for internal resistance test of cells | Up to 120 A (test time 250 ms) |
| Number of balancing channels | 16 |
| Balancing current (charge, discharge), A | From 0.05 to 2 |
| Maximum balancing voltage, V | 4.2 |
| User interface language | ENG |
⚠️Warning! Incorrect test settings may cause permanent damage to the battery module under test.⚠️
